    • Standard cylinders to ISO 6432

      DSNURSS

    • # Diameter 8, 10, 12, 16, 20, 25, 32, 40, 50, 63mm

      # Piston rod and cylinder barrel made of stainless steel

      # This series is not repairable

      # The cap is swaged onto barrel

      # Good running performance and long service life thanks to smooth,hard inner surface of cylinder barrel.
      # Position sensing
      # Fixed/adjustable cushioning

    • a a
    • Ordering Code

      Key features

      # Diameter 8, 10, 12, 16, 20, 25, 32, 40, 50, 63mm

      # Piston rod and cylinder barrel made of stainless steel

      # This series is not repairable

      # The cap is swaged onto barrel

      # Good running performance and long service life thanks to smooth,hard inner surface of cylinder barrel.
      # Position sensing
      # Fixed/adjustable cushioning
      Parts list

      NO.
      Name
      		Material
      1
      Piston Rod
      High-alloy steel
      2
      Bearing cap
      Wrought aluminium alloy
      3
      Cylinder Barrel
      High-alloy stainless steel
      4
      Seals
      Nitrile rubber
      Technical data

      Bore(mm)

      8

      10

      12

      16

      20

      25

      32

      40

      50

      63

      Pneumatic connection

      M5
      G1/8
      G1/4
      G3/8

      Piston rod thread

      M4
      M6
      M8
      M10X1.25
      M12X1.25
      M16X1.5

      Constructional design

      Piston, Piston rod, Cylinder barrel

      Cushioning
      Flexible cushioning rings/pads at both engs;Adjustable cushioning at both ends

      Cushioning length

      14
      18
      20
      21

      Position sensing

      Via proximity sensor

      Type of mounting

      Direct mounting;Via accessories

      Mounting position

      Any

      Operating medium

      Filtered compressed air,lubricated or unlubricated

      Operating pressure

      0.1 ... 1.0Mpa

      Ambient temperature

      -20 ... +80
      Dimensions

      DSNU 32-63

      Bore
      AM
      B1 f8
      BE
      CD
      D h9
      D5
      D6
      EE
      EW
      J1
      J2
      J3
      J4
      8
      12
      -
      M12X1.25
      4
      15
      12
      9.3
      M5
      8
      20.4
      16.5
      23.2
      13.9
      10
      12
      -
      M12X1.25
      4
      15
      12
      11.3
      M5
      8
      22
      18.2
      25.9
      13.8
      12
      16
      5.5
      M16X1.5
      6
      20
      16
      13.3
      M5
      12
      22
      20
      28.6
      11
      16
      16
      5.5
      M16X1.5
      6
      20
      16
      17.3
      M5
      12
      22.5
      22.5
      33.2
      11
      20
      20
      7
      M22X1.5
      8
      27
      22
      21.3
      G1/8
      16
      26.5
      22.5
      35.3
      13
      25
      22
      9
      M22X1.5
      8
      27
      22
      26.5
      G1/8
      16
      31.5
      25
      40.2
      16
      Bore
      KK
      KV
      KW
      L
      L1
      L2
      L3
      L4
      L5
      L15
      L16
      SW2
      WH
      XC
      8
      M4
      19
      6
      6
      78
      22
      34
      12
      10
      78
      62
      /
      16
      64
      10
      M4
      19
      6
      6
      78
      22
      34
      12
      10
      78
      62
      /
      16
      64
      12
      M6
      24
      8
      9
      89
      28
      38
      17
      15
      94
      72
      5
      22
      75
      16
      M6
      24
      8
      9
      95
      28
      44
      17
      15
      100
      78
      5
      22
      82
      20
      M8
      32
      11
      12
      112
      32
      51.6
      20
      18
      116
      92
      7
      24
      95
      25
      M10X1.25
      32
      11
      12
      119.5
      36
      53.1
      22
      20
      125.5
      97.5
      9
      28
      104

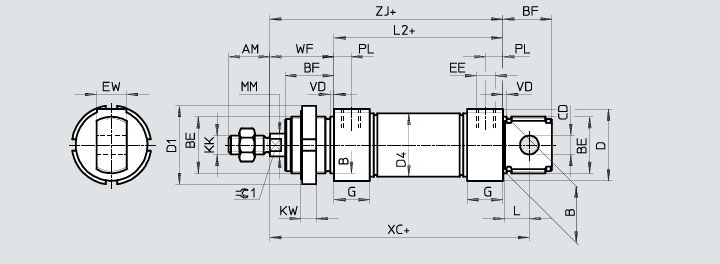

      DSNU32-63

      Bore
      AM
      B h9
      BE
      BF
      CD E10
      D
      D1
      D4
      EE
      EW
      G
      32
      22
      30
      M30X1.5
      26
      10
      38
      42
      33.6
      G1/8
      16
      19
      40
      24
      38
      M38X1.5
      30
      12
      46
      50
      41.6
      G1/4
      18
      25
      50
      32
      45
      M45X1.5
      33
      16
      57
      60
      52.4
      21
      63
      70
      65.4
      G3/8
      28
      Bore
      KK
      KW
      L
      L2
      MM f8
      PL
      VD
      WF
      XC
      ZJ
      1
      32
      M10X1.25
      8
      13
      69.5
      12
      9
      2
      34
      117.5
      103.5
      10
      40
      M12X1.25
      10
      15
      84.6
      16
      12
      3
      39
      139.6
      123.6
      13
      50
      M16X1.5
      16
      86.2
      20
      44
      147.2
      130.2
      17
      63
      94.2
      13
      45
      156.2
      139.2
      Peripherals overview
      coming soon
      Product range overview
      coming soon
      3D show
      coming soon
